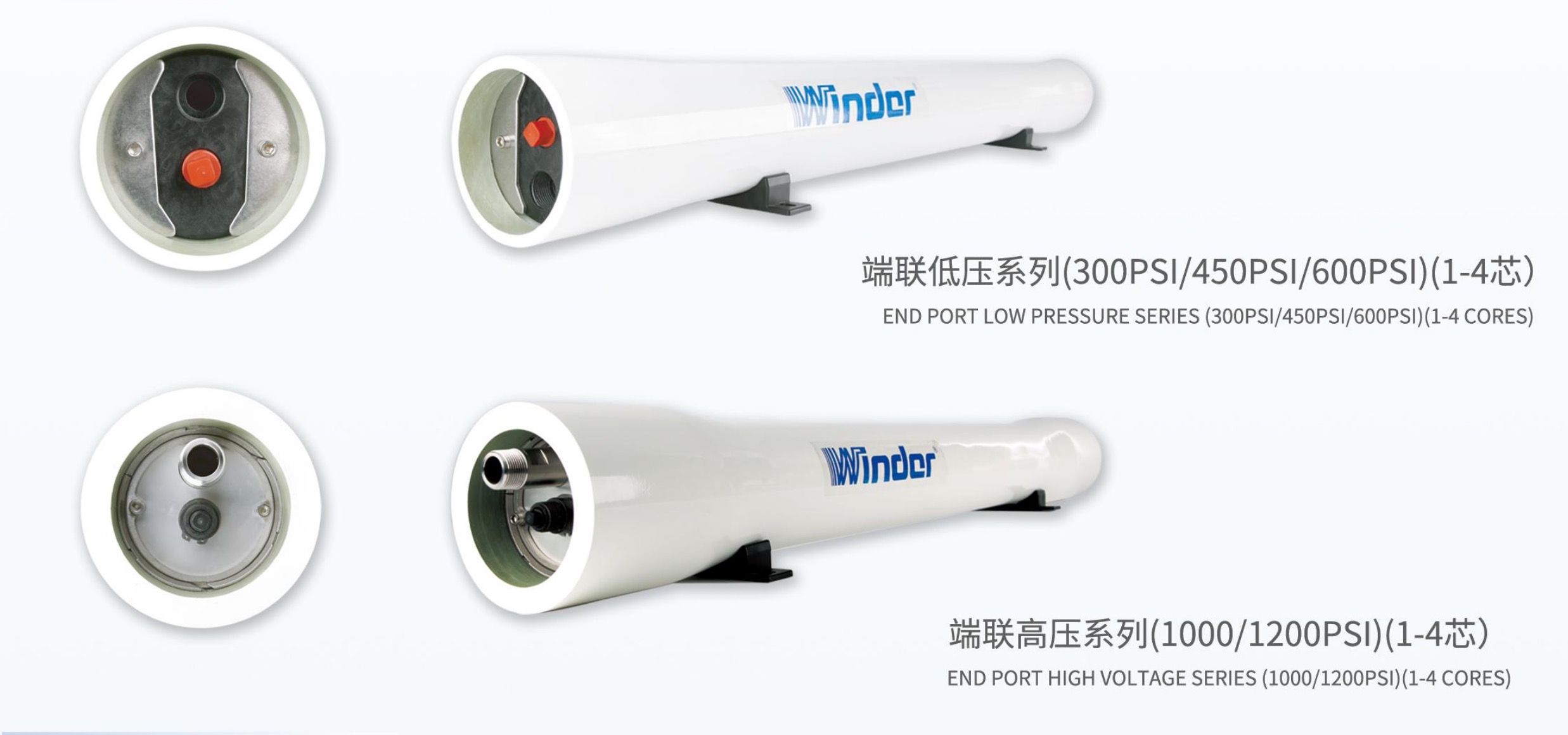

4"end port /low pressure | 4"end port/high pressure | |
Model | W40E300/450 | W40E600/1000/1200 |
Design Pressure | 300PSI/450PSI | 600PSI/1000PSI/1200PSI |
Cyclic Test | 100,000 times | 100,000 times |
Burst Pressure | 6 times | 6 times |
Elements Quantity | 1-4 | 1-4 |
Operating pH Range | pH 3-11 | pH 3-11 |
Operating Temperature | -10℃-66℃(14F-150°F) | -10℃-66℃(14F-150°F) |
Feed/Concentration Port | 3/4" | 3/4" |
Permeate Port | 1/2"NPT | 1/4"NPT |
